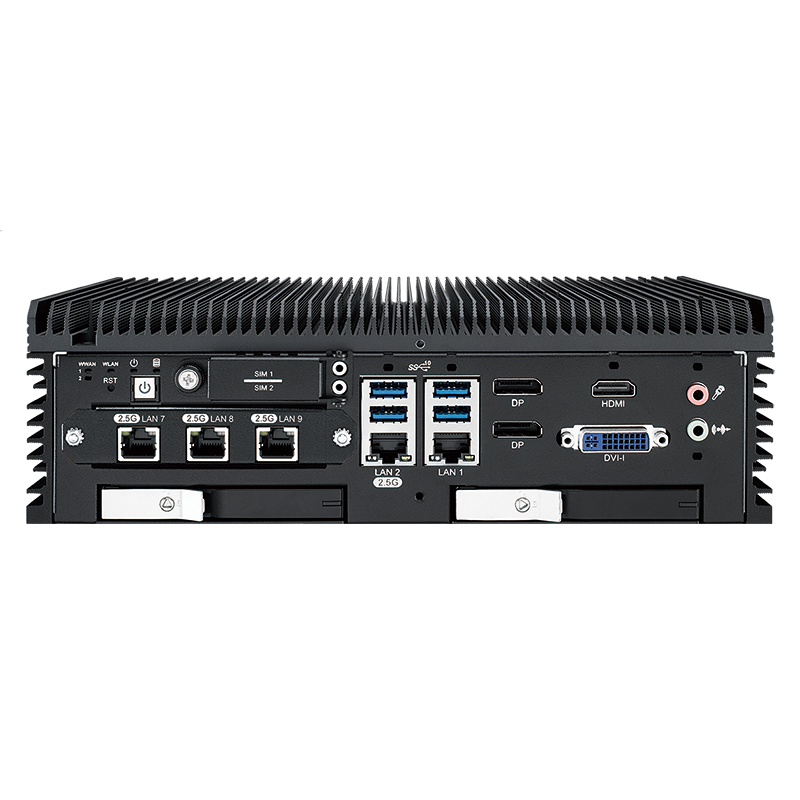

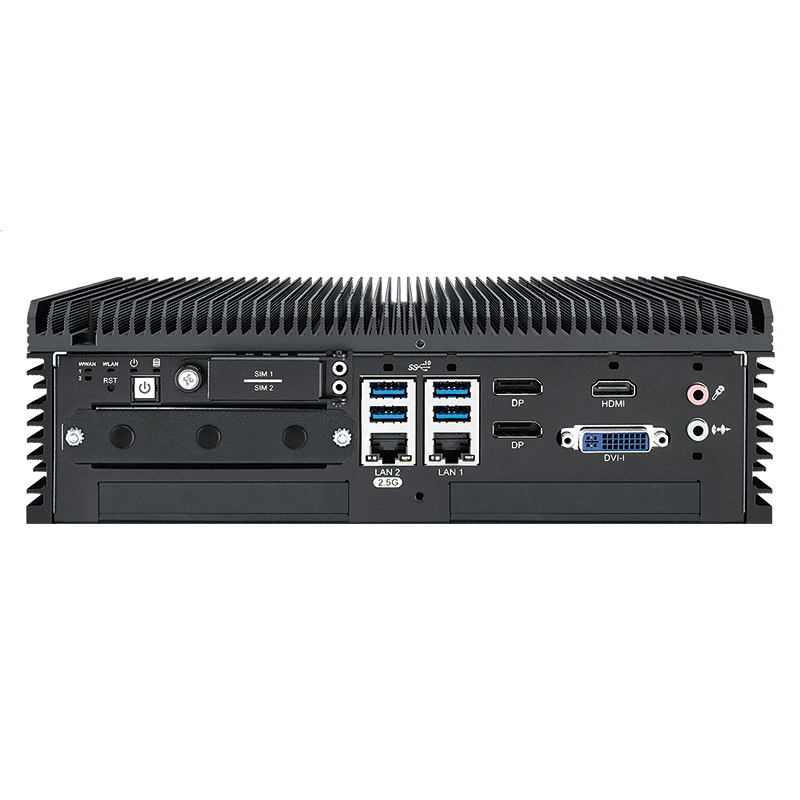

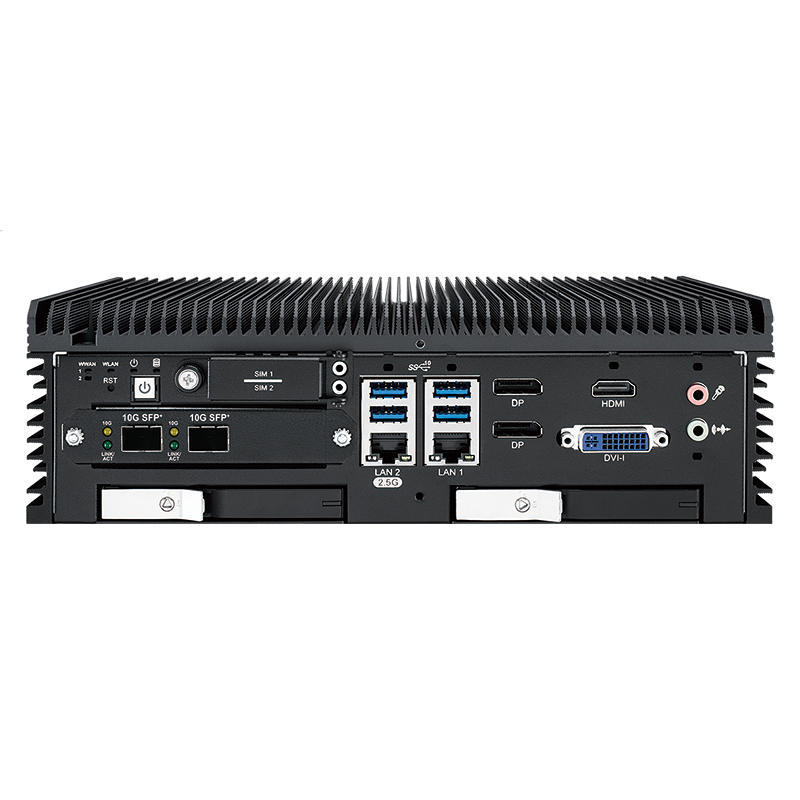

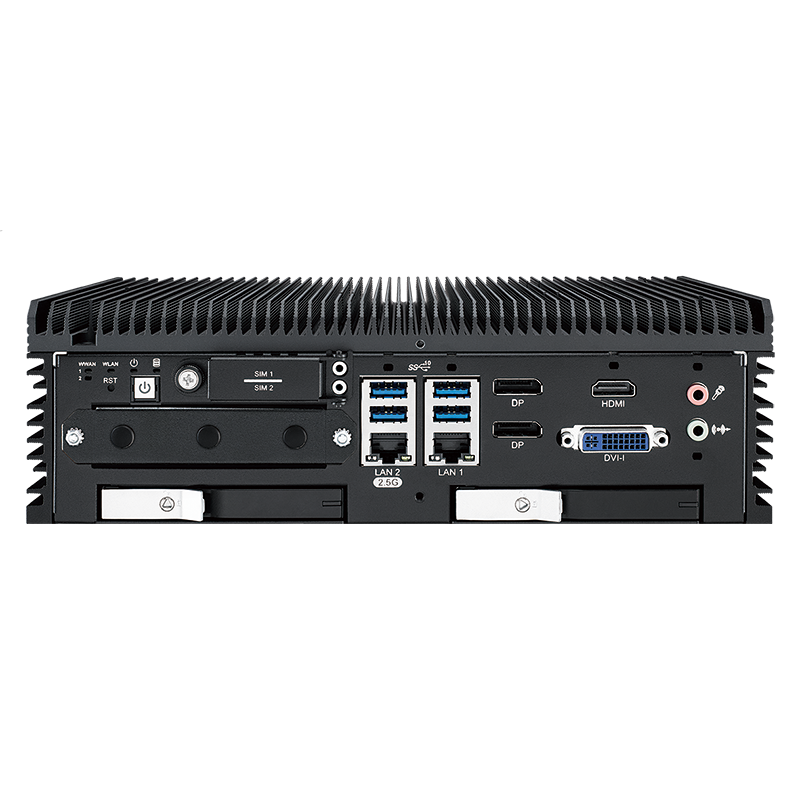

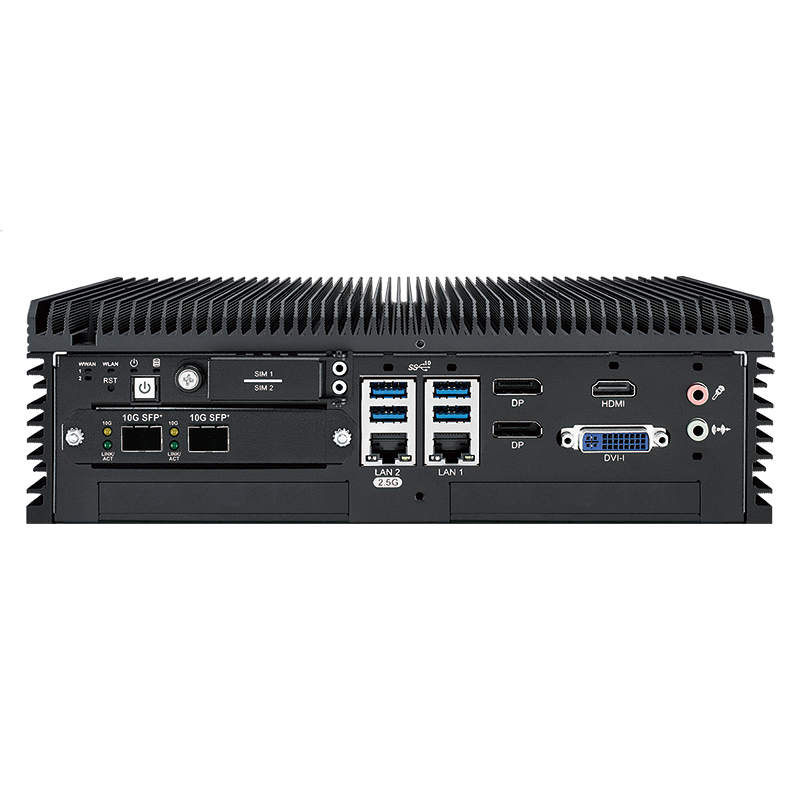

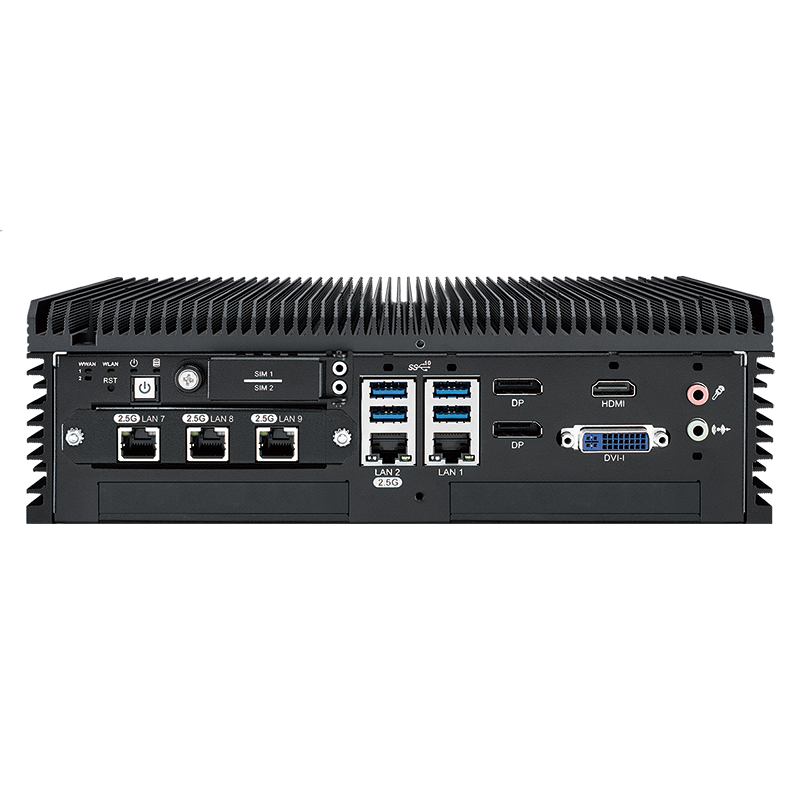

The Vecow ECX-4000 is a high-performance fanless AI computing system designed to meet the demands of modern edge AI applications. Powered by the Intel® Core™ Ultra 200S Series processor (Arrow Lake) and Intel® W880 PCH, the system leverages Intel’s advanced hybrid architecture, which combines P-cores and E-cores for up to 24 cores, an integrated NPU for AI acceleration and Intel® Xᵉ LPG Graphics. These capabilities make the ECX-4000 ideal for use cases such as in-vehicle computing, intelligent logistics, public security, and industrial AI deployments.



The ECX-4000 supports dual DDR5 memory with a capacity of up to 96 GB and offers an extensive array of I/O interfaces, including 4 COM ports, 6 USB 3.2 Gen2 ports, 2 external SIM card sockets, and versatile Ethernet options such as 10G SFP+, 2.5G, 2.5G PoE+, and 1G LAN, ensuring robust connectivity for diverse deployment scenarios.



In addition, the ECX-4000 supports a wide-range 9V to 50V redundant power input and advanced software-controlled ignition power management. These enhancements ensure reliable performance across a variety of demanding industrial applications.



This platform has achieved Intel® Edge System Qualification (ESQ) and is listed as an Intel® AI Edge System. By leveraging the OpenVINO™ toolkit to fully optimize CPU, GPU, and NPU performance, it is validated via vertical-based workloads to ensure the system is truly fit-for-purpose. This workload-aligned approach prevents over-provisioning, simplifying your evaluation while ensuring reliable deployment for Gen AI and Vision AI.
